CNC Generating Grinding Machine
- Advanced CNC supporting the precise and complex mathematical calculation

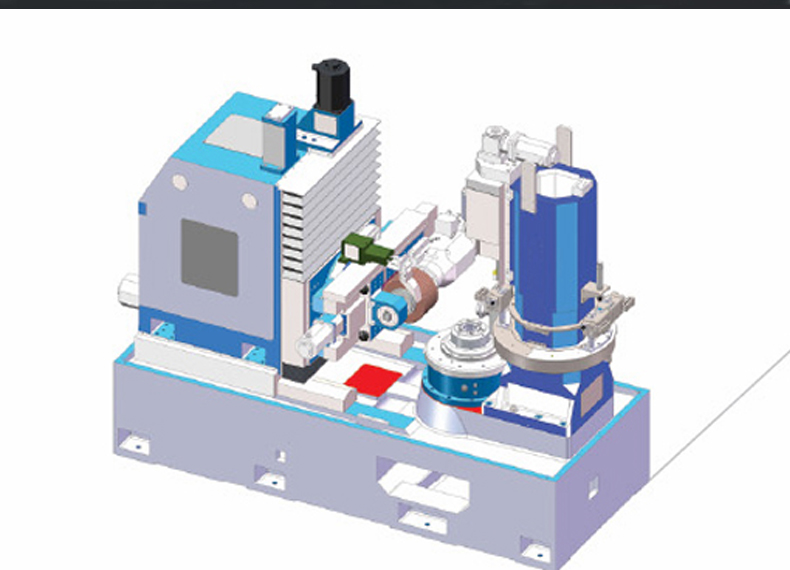

- Fine quality cast bed, 11 axes with 5 axes interpolation movement.
- Torque motor table as part axis with encoder for closed loop control.

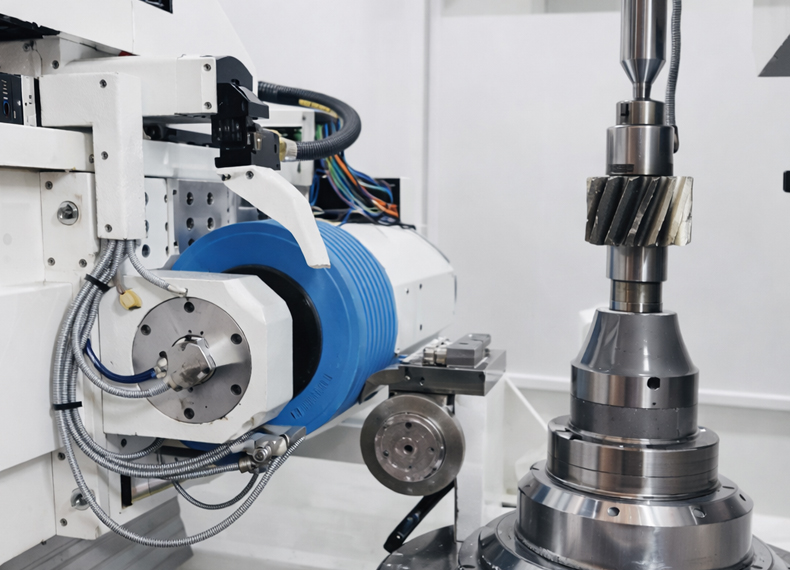

- High Speed and high torque grinding spindle support various machining.
- Free correction of torsion grinding (Twist control grinding).
- Various advanced configuration and flexible automation solution.
Applicable Scope:-
Reducer Gear, Industry mechanical gears, agricultural machinery gears, vehicle gears and more.
Technical Specification
| CNC Generating Grinding Machine | |
|---|---|

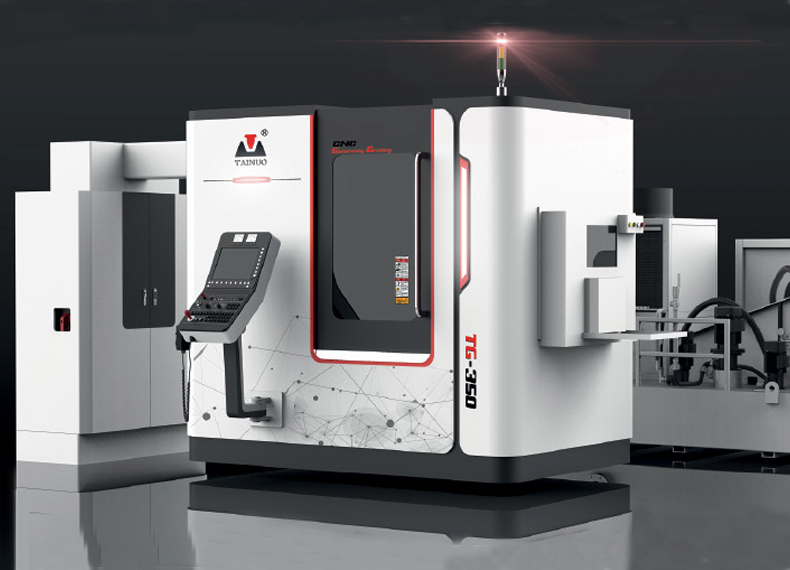

| TG-350 | |
| Workpiece | |
| Max. Workpiece OD. | Ф350mm |
| Max. Module | M6 |
| Max. Helix Angle | ±45° |
| Part Table Diameter | Ф180mm |
| Grinding Parameter | |
| Spindle Nose Taper | HSK C80 |
| Max. Grinding Wheel | Ф280 × 115 x 160mm |
| Max. Dressing Roller | Ф140 × 52 x 40mm |
| Motion Parameter | |
| Grinding Spindle (S axis) | 23kw Max.7000rpm |
| Table Rotation (C axis) | 21kw Max.1000rpm |
| Dresser (S2 axis) | 1.7kw Max.6000rpm |
| Radial Feed (X axis) | 385mm (80-465mm) |
| Tangential Feed (Y axis) | 250mm (0-250mm) |
| Axial Feed (Z axis) | 495mm (-10-485mm) |
| Tailstock (W axis) | 250mm (485-735mm) |
| Mainchine Specification | |
| Power Supply | 3AC 380V 60KVA |
| CNC system | FANUC 31i-B (11 Axes) |
| Floor Space (L x W x H) | 5000x5000x2600mm |
| Apprx. Machine Weight | 13,000kg |
