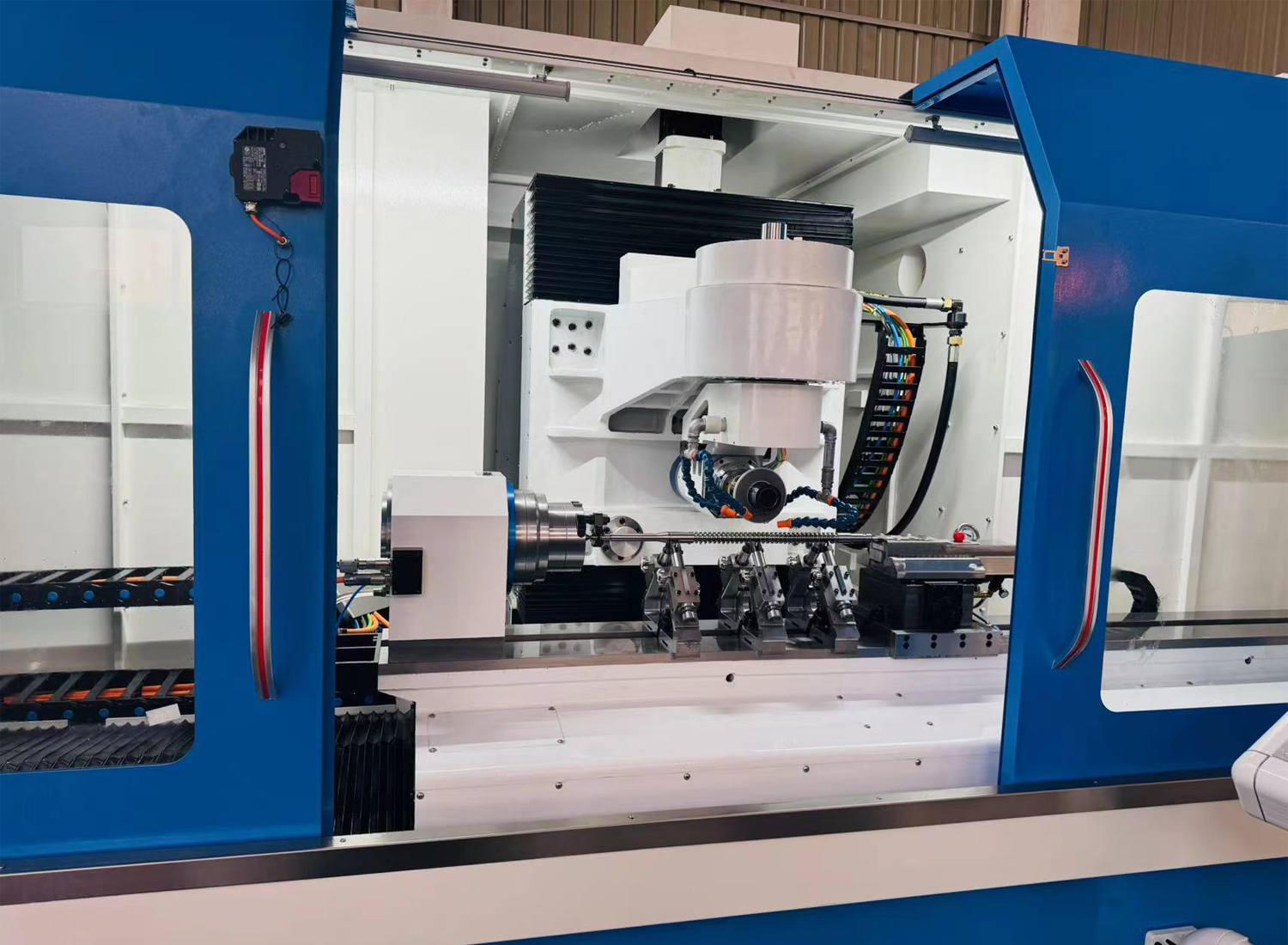

CNC-Broach-Spline-Grinding-Machine

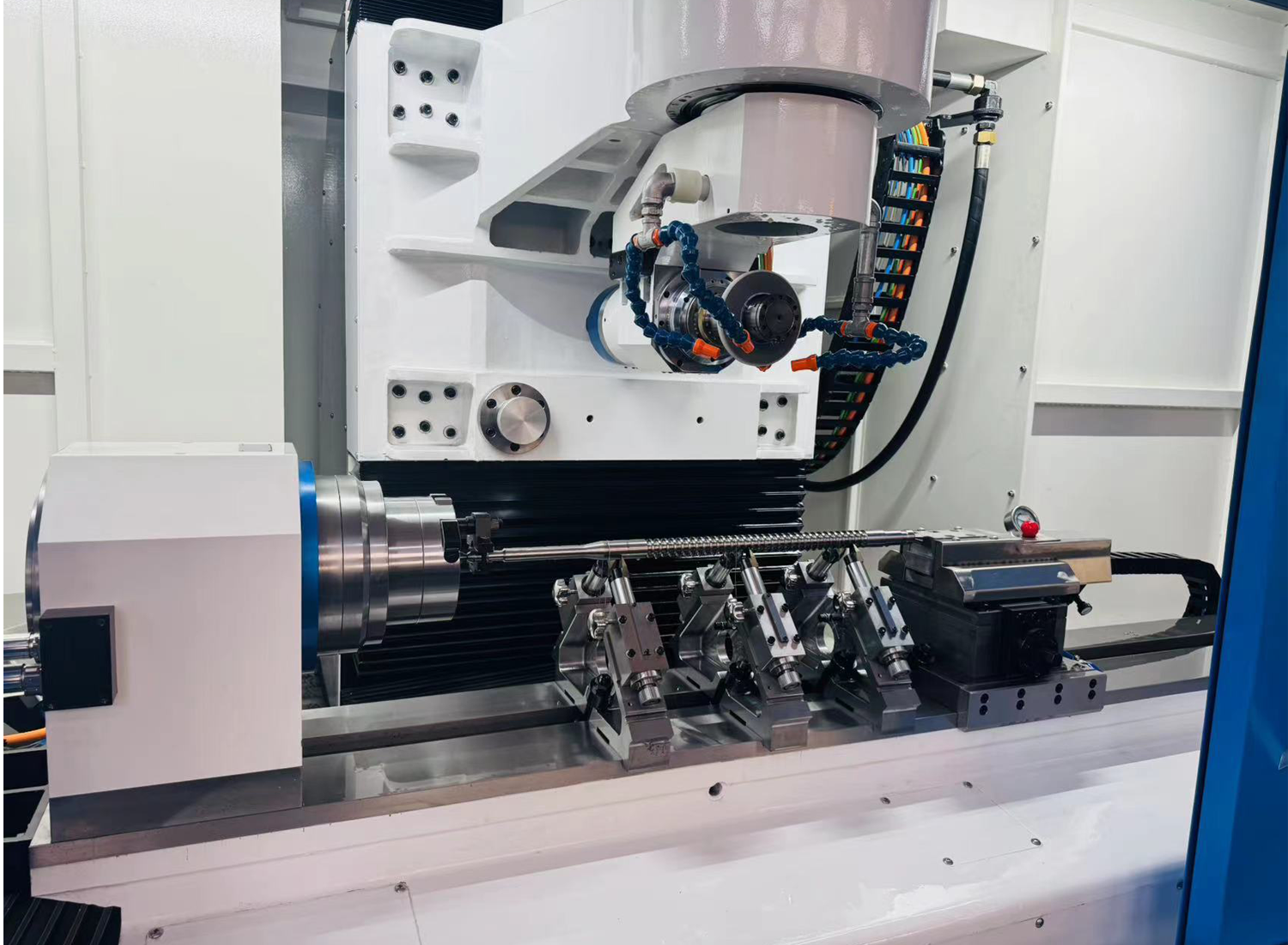

Broach-Spline-Grinding-Machine

CNC Broach Spline Grinding Machine

At Super Tools, we manufacture broaches on our state of the art CNC Broach Profile Grinding Machine to provide our customers with high-precision, reliable, and efficient broach grinding solutions. This advanced CNC machine ensures every broach we produce meets the strictest tolerances. Our High Precision CNC Broach Profile Grinder delivers accurate tooth geometry, superior surface finish, and consistent profile accuracy across a wide range of broach types. As a High Precision CNC Broach Grinder for Tool Manufacturing, the machine combines CNC technology with expert process control to produce broaches with excellent cutting performance and long-term durability.

Our in-house CNC capability allows us to provide consistent quality across small and large production batches, while also enabling fast turnaround times, reducing downtime, and helping our customers meet their production schedules with confidence.

Benefits of Our CNC Broach Profile Grinding Machine for Customer’s:-

Exceptional Precision & Accuracy

Our CNC technology guarantees perfectly ground broach profiles, maintaining exact dimensions, tooth profiles, and surface finishes. This precision ensures your gears and components perform at their best.

Consistent & Repeatable Quality

Automation eliminates manual errors and ensures every broach meets strict tolerances. Whether you order one piece or a large batch, you receive consistent, high-quality tools every time.

Faster Turnaround

In-house CNC broach grinding allows for quick production and regrinding, reducing lead times and helping your operations stay on schedule.

Extended Tool Life

Accurate grinding minimizes wear and maintains optimal cutting edges, increasing broach life and reducing your tooling costs.

Capability for Complex Profiles

CNC system handles complex broach geometries and custom profiles, allowing flexibility for a wide range of applications and industries.

Reduced Scrap & Rework

High accuracy and automated operations reduce errors, scrap, and rework, saving time, material, and cost for our customers.

Customer-Centric Service

With the CNC Broach Profile Grinding Machine in our warehouse, Super Tools delivers precision, reliability, and efficiency, ensuring your production goals are met with confidence.

Technical Specification – Capacity

  • Maximum Broach Length: Up to 2,000 mm (customizable as per application)
  • Maximum Broach Diameter: Up to 280 mm
  • Helical Broaches can be also manufactured as per customer requirement.
  • Supports grinding of short, long, and special form broaches used for spline, serration, and special profile cutting applications.
  • CNC control enables flexible programming for different broach profiles, tooth pitches, and relief angles without mechanical changes.

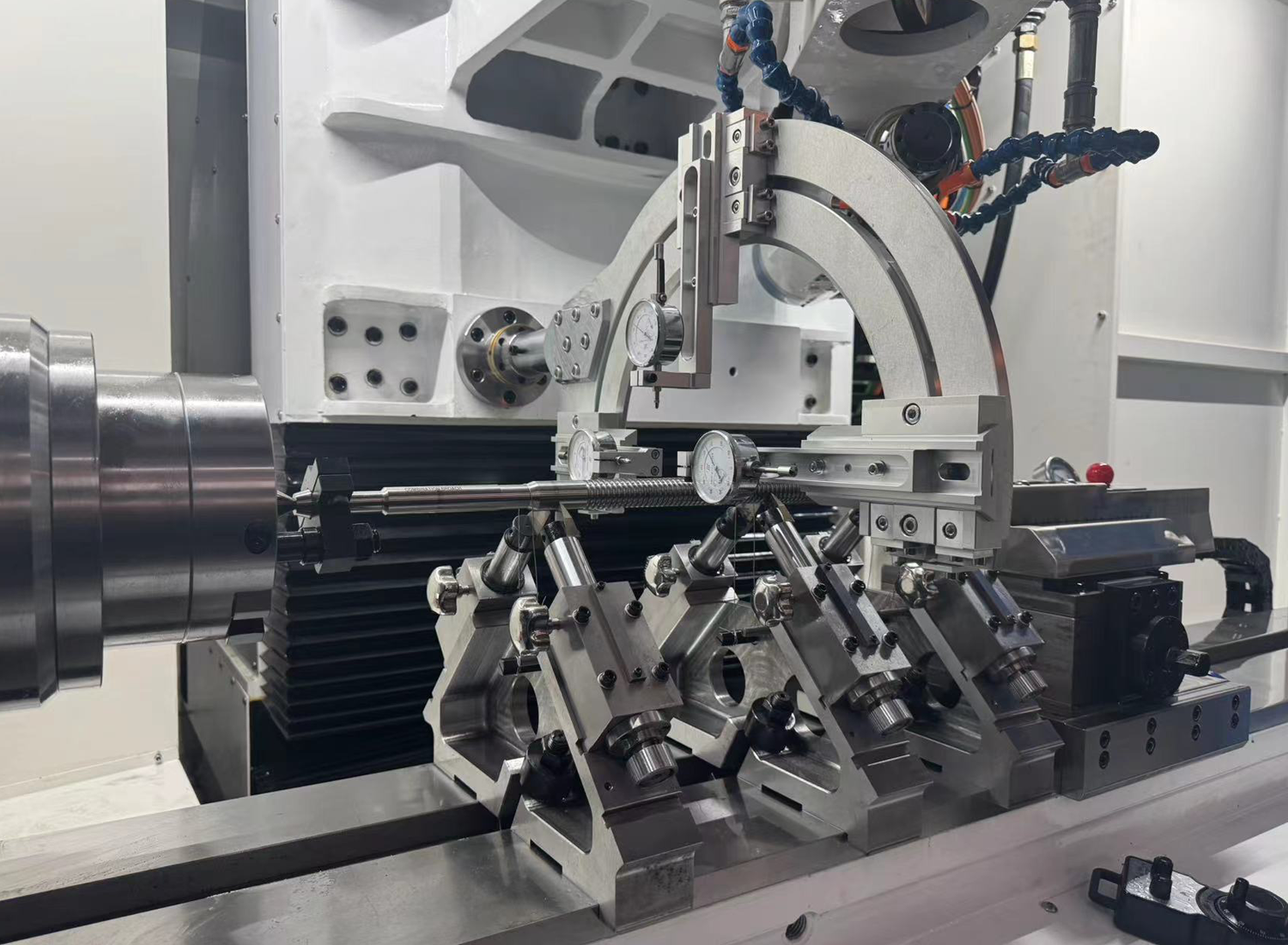

Technical-Specification-Broach-Spline-Grinding-Machine
