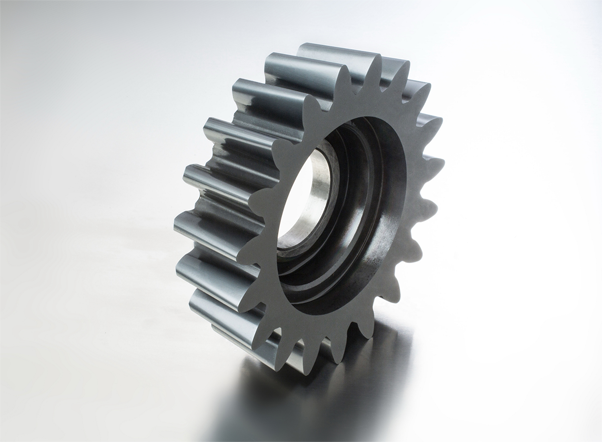

Disc Type Shaper Cutter
Disc Type Shaper Cutter
STC is a Manufacturer of Disc Type Gear Shaper Cutters designed to cut any gear, internal or external, spur or helical. They can also be used to cut splines, serrations, sprockets, or many other involute forms. But they may also be designed for externals if required.
Technical Specification
Material:
M35, ASP2030, ASP2052, S390 and Solid Carbide
Gear Type:
Internal & External
Module:
0.3 Module to 24 Module
DP Range:
80 to 1.45 DP
PCD:
40mm – 250 mm
Diameter:
Up to 300mm for Disc or Counter Bore Type
Profiles:
Tip Relief, Protuberance, Semi-topping
Accuracy class:
‘AA’ & ‘A’ as per DIN1829
All types of PVD coating as per requirement.
